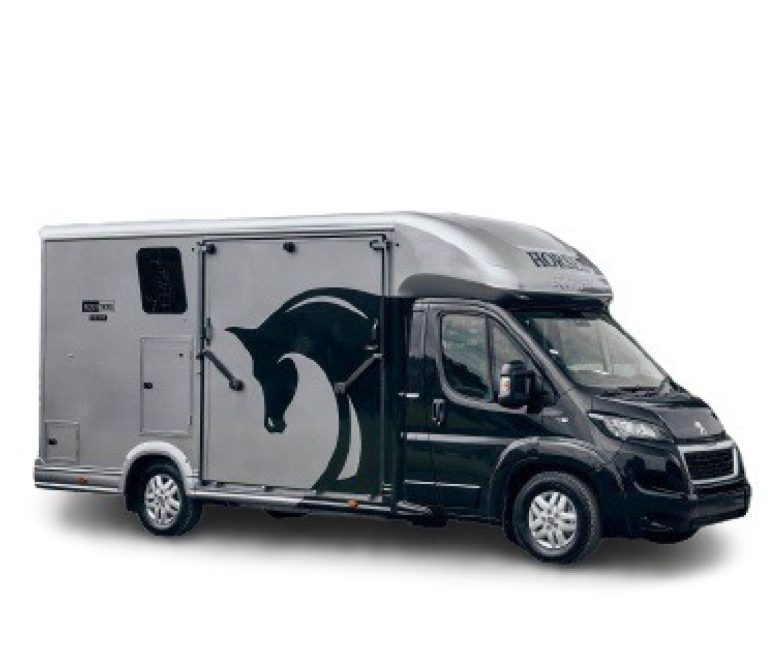

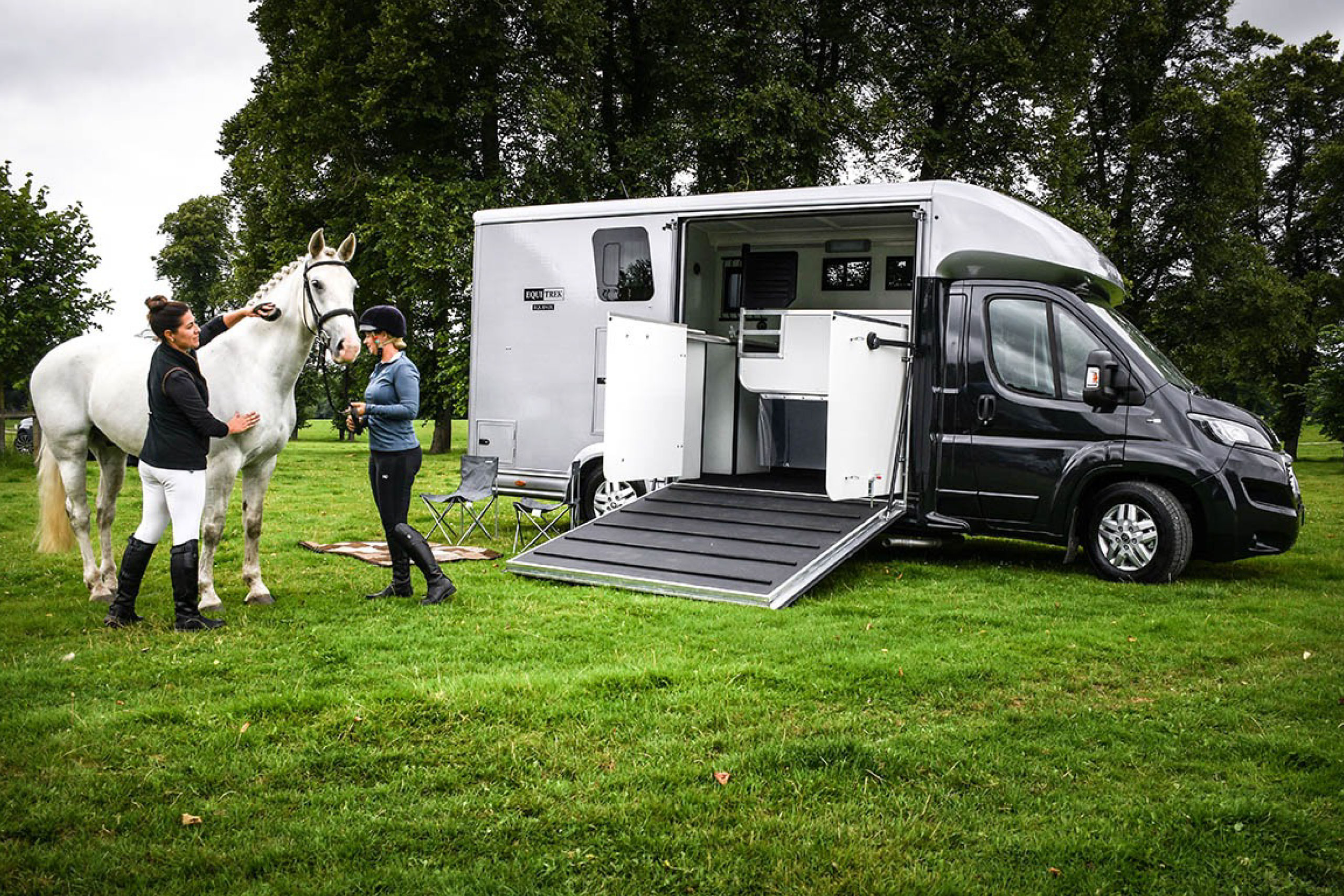

Equinox 4,500kg
A compact, easy to drive horsebox, with a gross maximum weight of 4500kg, for the owner who requires a greater payload. The Equinox is powered by a powerful HDI diesel engine which complies with the latest Euro 6 standards and gives effortless performance and outstanding economy. The Equinox has the added benefit of a separate living area, which can sleep up to 2 people. Including a kitchen area with a combination gas hob and sink and cupboard space. The GBP prices apply to the UK only. International customers will need to contact their nearest dealership for prices.
Horsebox Layout
Explore layouts, storage, and living spaces in detail
Optional Extras
- Automatic Gearbox
- Engine Upgrade
- Mudflaps
- Leather Cab Seats
- Two Tone Leather, Contrasting Piping or Quilted Stitching on Leather Cab Seats
- Heated Cab Seats
- Solar Charger
- Truma Combi
- Air Conditioning in Horse Area
- Porta Potti
- Electric Fridge
- TV & DVD Player
- 240 Volt Hook Up
- 12 Volt Socket
- Leisure Battery
- Interior Upgrade Awning
- Flush Glazed Windows
- Drop Down Windows
- Additional Skylight Roof Vent
- Flettner 3000 Roof Ventilator
- Electric Rood Extractor Fan
- Air Conditioning in Horse Area
- Temperature Monitor
- Grooms Locker
- Storage Rack
- Padded Walls
- Padding for Partition
- Extra Heigh Partition
- Full Depth Partition
- Elite Partition
- Sliding Stallion Partition
- Fixed Stallion Partition
- Breast Bar Solid to the Floor
- Collapsable Full Depth Breast Bar
- Anti-Weaving Grill
- Loading Light
- Red LED Travel Light
- Lined Roof
- Internal Locker Access
- Spray- Away Horse Shower
- Hinged Door Over Pod
- Half Ramp
- Hard Wired Camera with 7” Monitor and Reversing Camera
- Tracker Unit
- Ferry Lashing Points
- Extra Tie Ring
- Spare Wheel & Bracket
- Safety Kit
- Paint
- Metallic Cab Upgrade
- Graphics
- Paintseal Direct- protective coating
All of our vehicles are built on brand new unregistered Peugeot chassis' powered by the latest HDI diesel engine, which have been chosen for their superior performance and reliability.
Our vehicles also conform to the latest Euro 6 antipollution standards.
These super smooth, powerful engines, together with six speed gearbox, are extremely economical.
Safety:
Fully European type approved seatbelts
Driver seatbelt alert
Driver airbag
Open door detection
Ventilated front disk brakes, Anti-lock Breaking System (ABS), Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD)
Steering:
Variable power steering which is linked to vehicle speed, accounting for lighter steering during low speed manoeuvres and firmer steering at high speeds
Comfort:
Height adjustable seats with lumbar support
Electric windows
Double courtesy light
Steering wheel controls
Seating:
Additional Cab Seat. Providing an additional passenger seat with seat belt in cab (three seats in total)
Exterior:
Electrically adjustable dual glass wing mirrors
Heated wing mirrors
Halogen headlights
Daytime Running Lights
Service & Warranty:
Service every 24,000 miles or 2 years
UK 3 years / 100,000 miles warranty
EU 2 years / unlimited mileage warranty
Security: Remote central locking
Deadlocks on doors
Transponder electronic immobiliser system
Colour:
Self colour white with grey graphics as standard; any colour available upon quotation.
Grooms Door:
Large, lockable door for easy access.
Partition:
Fully adjustable partition with skirt to the floor
Collapsible Breast
Bar:
Full width padded breast bar incorporating external release system for emergencies
External Tack Locker:
Lockable with courtesy light, includes two saddle racks and two bridle racks
Ventilation:
Four opening windows and roof vent
Lighting:
One interior light
Tie Rings:
Two horse tie rings, two hay net tie rings, two exterior tie rings
Storage:
Large locker over cab, accessed from horse area
Ramp:
Slip resistant rubber ramp with alloy tread rails
Bulkhead:
Full height bulkhead to keep horse area and living area totally separate
Grooms Door:
Large, lockable door for easy access
Lighting:
One interior light
Floor:
Cushion flooring
Ventilation:
Three windows

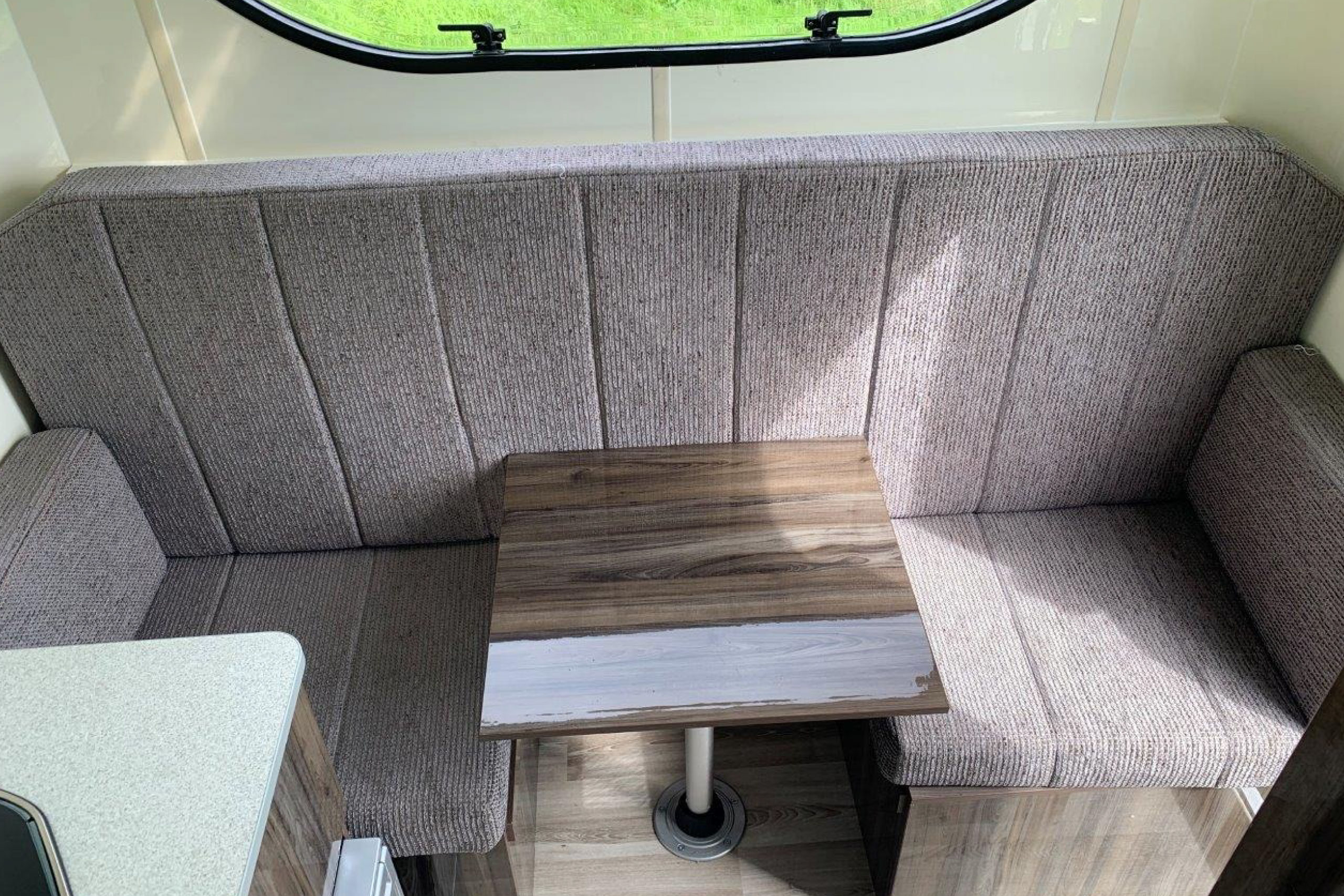

Seating/Sleeping:
Comfortable seating that converts into two bunks
Sink:
With tap
Cooking:
Gas hob
Storage: One wardrobe and top cupboards

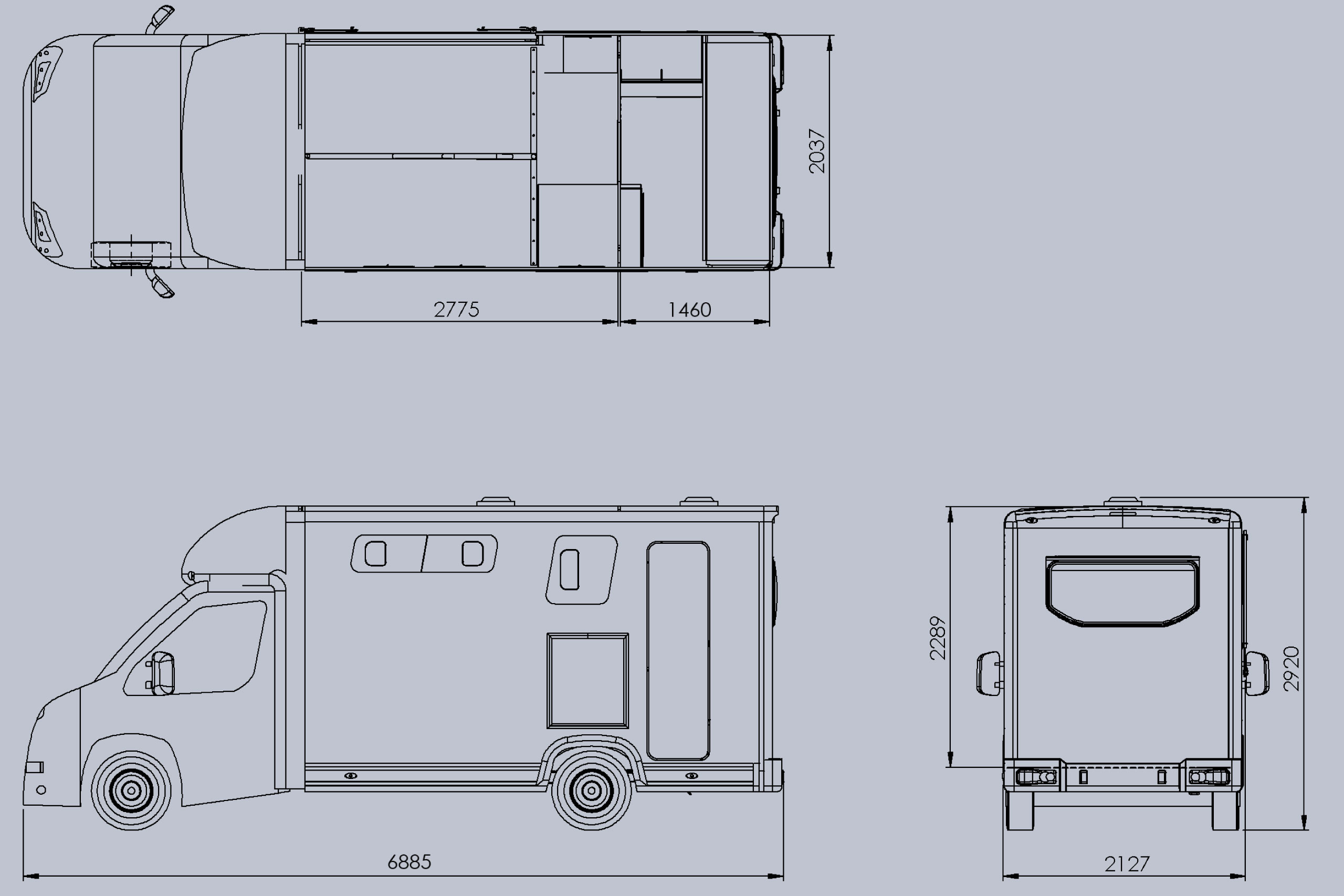

| Internal Dimensions | External Dimensions and Weights | ||||
| Horse Area: | Ft. ins | m | Body Area: | Ft.ins | m |
| Length | 9'1" | 2.768 | Length | 22'59 | 6.885 |
| Width (E) | 6'9" | 2.045 | Width (B) | 6'9" | 2.130 |
| Height | 7'7" | 2.300 | Height | 9'58" | 2.920 |
| Living Area: | |||||
| Length (G) | |||||
| Width (E) | |||||
| Height | |||||
| Approx. Weight | Kg | ||||
| Front Axle Max Load: | 2100KG | ||||
| Rear Axle Max Load: | 2500KG | ||||
| Unladen Weight: | 2540KG | ||||
| Gross Weight: | 4500KG | ||||
| Towing Capacity: | 1500KG | ||||
Weights and Dimensions
| External Dimensions: | Ft.ins | m |
|---|---|---|
| Length: | 22'59" | 6.885 |
| Width: | 6'9" | 2.130 |
| Height: | 9'58" | 2.920 |
| Approx. Weight: | Kg | |
|---|---|---|
| Front Axle Load: | 2100KG | |
| Rear Axle Load: | 2500KG | |
| Unladed Weight: | 2540KG* | |
| Gross Weight: | 4500KG | |
| Towing Capacity: | 2000KG |
Paint & Graphics
- Self White Colour with Grey Graphics
Cab & Chassis
- Bluetooth
- Daytime Running Lights
- Heated Wing Mirrors
- 140BHP HDI Peugeot Diesel Engine
- 6 Speed Gearbox
- Driver Seatbelt Alert
- Driver SRS airbags
- Open Door Detection
- Ventilated Front Disk Brakes, Anti-Lock Breaking System (ABS), Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD)
- Height Adjustable Seats with Lumbar Support
- Double Courtesy Light
- On Board Trip Computer
- FM Digital Radio
- Halogen Headlights
- Remote Central Locking
- Deadlocks On Doors
- Immobiliser With Transponder
- Service Every 24,000 Mile or Two Years
- UK 3 years/100,000 Mile Warranty
- Variable Power Steering
Living Area
- Full Height Bulkhead
- Cushion Flooring
- Gas Hob
- Kitchen Unit
- Living Area Door
- Sink with Tap
Horse Area
- Full Height Bulkhead
- Composite High Impact Kick Boards
- Composite Panels
- Full Height Ramp
- Full Width Collapsible Breast Bar
- Grooms Doors Between Horse Area and Living Area
- Head Divider
- LED Interior Light
- Light and Spacious Interior
- Low, Wide Side Ramp Available In Full or Split-Height
- Safety Loading Doors
- Storage Over Pod
- Strong Aluminium Plank Floor with Dunlop Rubber
- Strong, Adjustable Partitions with PVC Skirt
- Two Horse and Two Haynet Tie Rings
- Tack Locker
From only
£54,999.00 + vat
Paint & Graphics
- Peugeot White & Cumulus Grey
- Peugeot White & Batik Orange
- Peugeot White & Cadbury Purple
- Peugeot White & Corris Grey
- Peugeot White & Firenze Red
- Peugeot White & Graphite Grey
- Peugeot White & Pacific Blue
- Standard Horse Graphic
Cab & Chassis
- Bluetooth
- Daytime Running Lights
- Heated Wing Mirrors
- 140BHP HDI Peugeot Diesel Engine
- 6 Speed Gearbox
- Driver Seatbelt Alert
- Driver SRS airbags
- Open Door Detection
- Ventilated Front Disk Brakes, Anti-Lock Breaking System (ABS), Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD)
- Height Adjustable Seats with Lumbar Support
- Double Courtesy Light
- On Board Trip Computer
- FM Digital Radio
- Halogen Headlights
- Remote Central Locking
- Deadlocks On Doors
- Immobiliser With Transponder
- Service Every 24,000 Mile or Two Years
- UK 3 years/100,000 Mile Warranty
- Variable Power Steering
- Alloy Wheels
- Mud Flaps (Front Wheels)
Living Area
- Full Height Bulkhead
- Cushion Flooring
- Gas Hob
- Kitchen Unit
- Living Area Door
- Mirror
- Sink with Tap
Horse Area
- Full Height Bulkhead
- Composite High Impact Kick Boards
- Composite Panels
- Full Height Ramp
- Full Width Collapsible Breast Bar
- Grooms Doors Between Horse Area and Living Area
- Head Divider
- LED Interior Light
- Light and Spacious Interior
- Low, Wide Side Ramp Available In Full or Split-Height
- Safety Loading Doors
- Storage Over Pod
- Strong Aluminium Plank Floor with Dunlop Rubber
- Strong, Adjustable Partitions with PVC Skirt
- Two Horse and Two Haynet Tie Rings
- Tack Locker
- Padding for Partition
- Extra Height Partition
- Hard Wired Camera with 7” Monitor and Reversing Camera
From only
£60,198.00 + vat
Paint & Graphics
- Peugeot White & Cumulus Grey
- Peugeot White & Batik Orange
- Peugeot White & Cadbury Purple
- Peugeot White & Corris Grey
- Peugeot White & Firenze Red
- Peugeot White & Graphite Grey
- Peugeot White & Pacific Blue
Cab & Chassis
- Bluetooth
- Daytime Running Lights
- Heated Wing Mirrors
- 140BHP HDI Peugeot Diesel Engine
- 6 Speed Gearbox
- Driver Seatbelt Alert
- Driver SRS airbags
- Open Door Detection
- Ventilated Front Disk Brakes, Anti-Lock Breaking System (ABS), Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD)
- Height Adjustable Seats with Lumbar Support
- Double Courtesy Light
- On Board Trip Computer
- FM Digital Radio
- Halogen Headlights
- Remote Central Locking
- Deadlocks On Doors
- Immobiliser With Transponder
- Service Every 24,000 Mile or Two Years
- UK 3 years/100,000 Mile Warranty
- Variable Power Steering
- Alloy Wheels
- Mud Flaps (Front Wheels)
- Leather Cab Seats
Living Area
- Full Height Bulkhead
- Cushion Flooring
- Gas Hob
- Kitchen Unit
- Living Area Door
- Mirror
- Sink with Tap
- Electric Fridge (42 Litre)
- Leather Upholstery
- Leisure Battery
Horse Area
- Full Height Bulkhead
- Composite High Impact Kick Boards
- Composite Panels
- Full Height Ramp
- Full Width Collapsible Breast Bar
- Grooms Doors Between Horse Area and Living Area
- Head Divider
- LED Interior Light
- Light and Spacious Interior
- Low, Wide Side Ramp Available In Full or Split-Height
- Safety Loading Doors
- Storage Over Pod
- Strong Aluminium Plank Floor with Dunlop Rubber
- Strong, Adjustable Partitions with PVC Skirt
- Two Horse and Two Haynet Tie Rings
- Flush Glazed Windows
- Tack Locker
- Padding for Partition
- Elite Partition
- Hard Wired Camera with 7” Monitor and Reversing Camera
From only
