Day-Treka

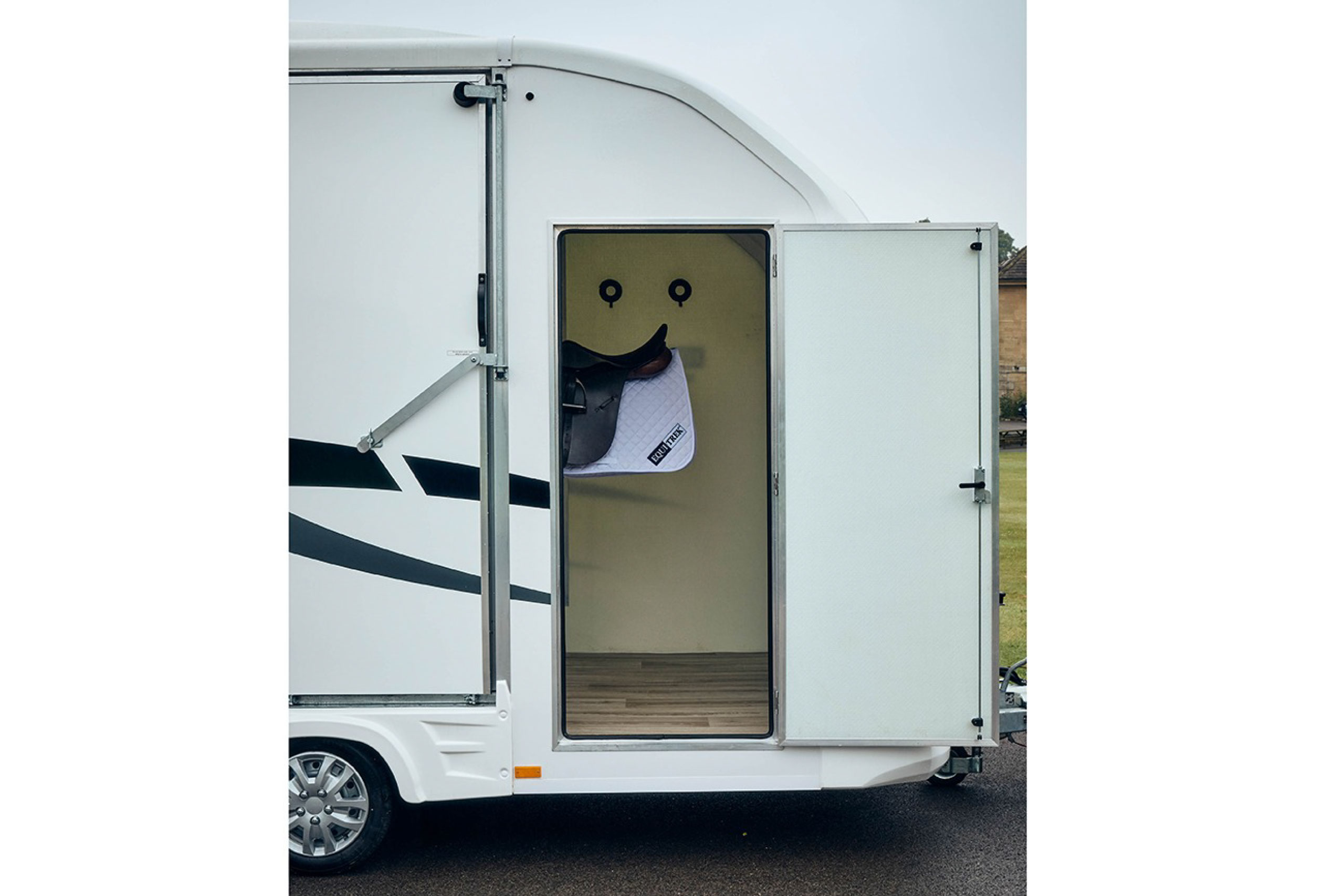

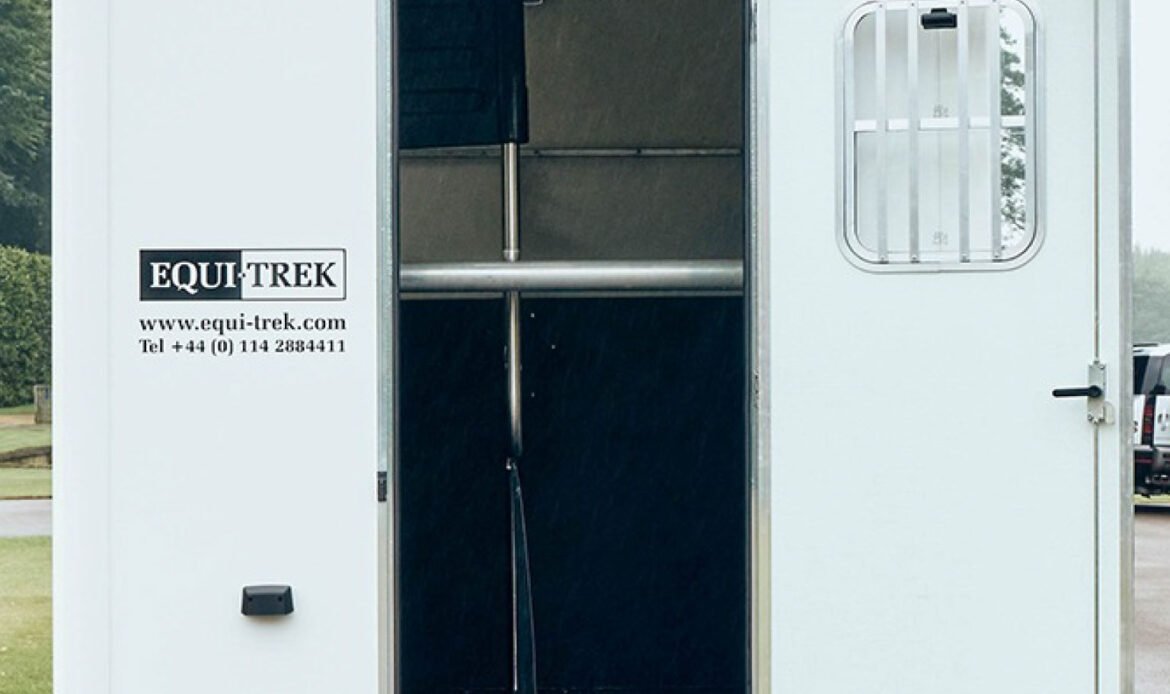

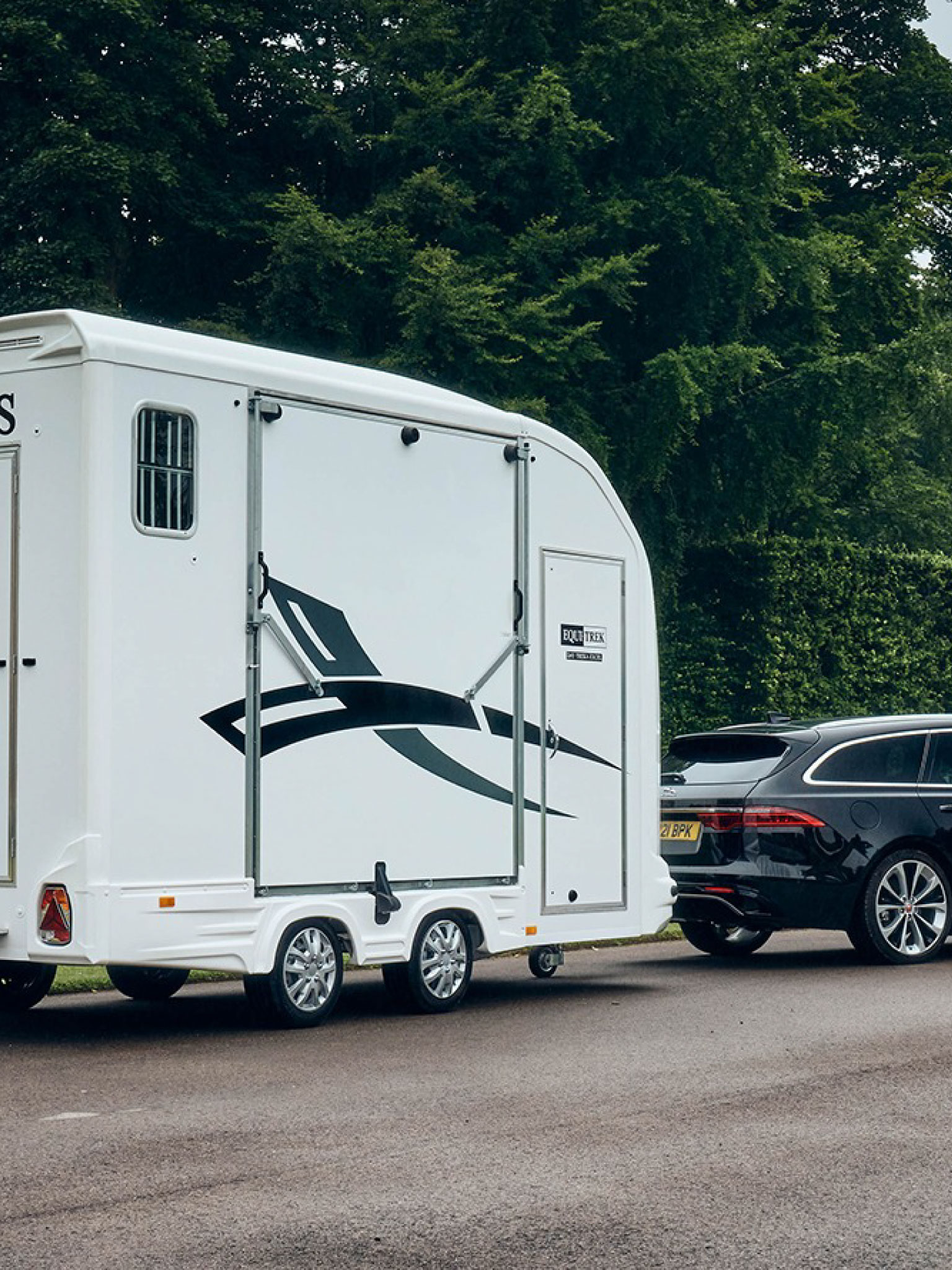

The perfect day trailer, the Day-Treka provides spacious rear facing travel for horses, and a large changing and tack area for owners. This trailer is wood free with a lightweight structure made from composite panels, which allows for a generous payload on either the 2000kg, 2500kg or 3000kg gross weight model. The fully enclosed horse area boasts a fantastic 7feet 9inches of head room and a low wide side ramp for safe and easy loading. The large tack and changing area is totally separate from the horse area and features an interior light, two saddle racks, two bridle racks and two coat hooks, providing a practical space to store all the essentials required when you travel with your horse.

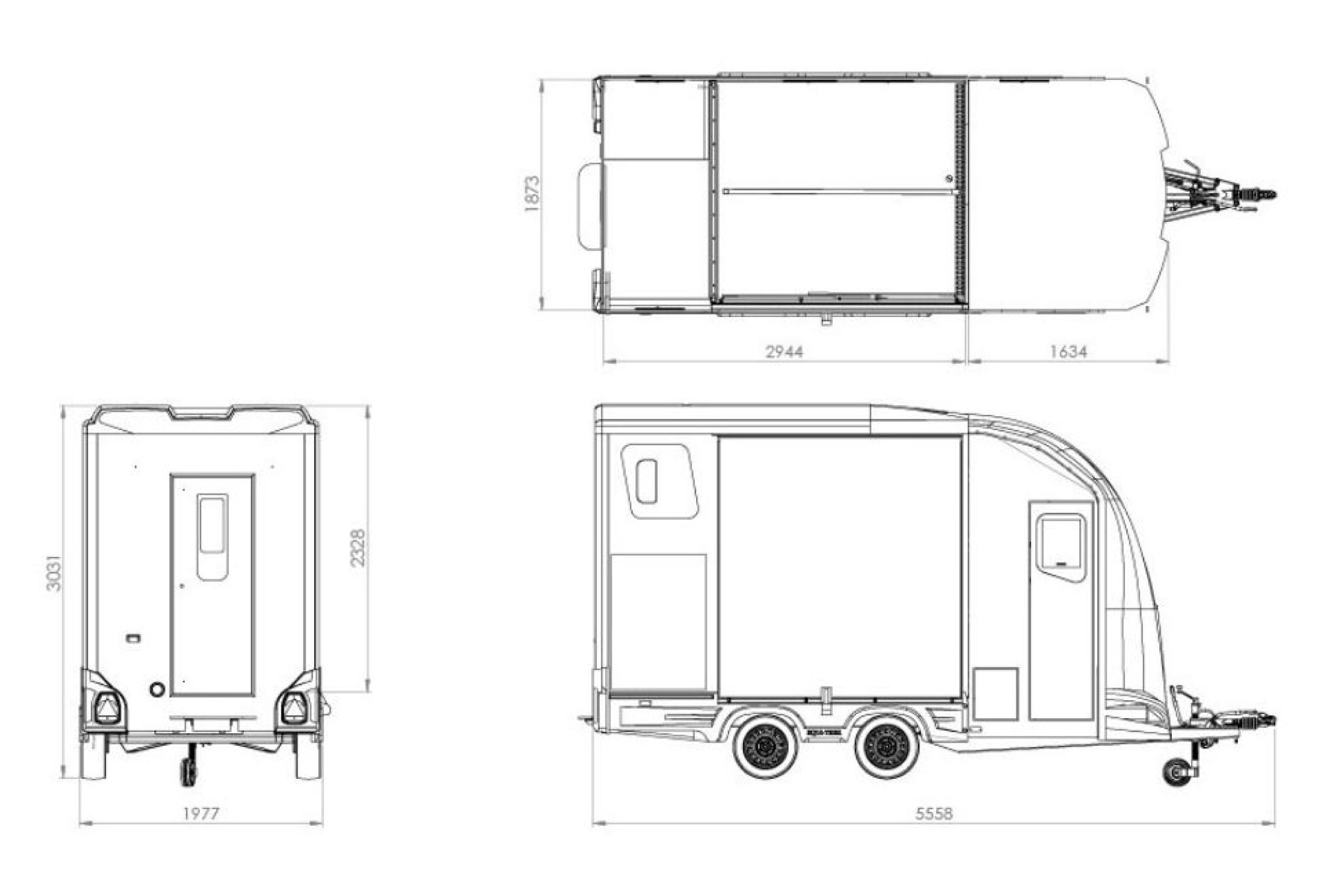

Trailer Layout
Optional Extras
- Chassis Upgrade- 2500kg and 3000kg
- Porta Potti
- Seat with Storage
- Awning
- Flush Glazed Windows
- Drop Down Windows
- Additional Skylight Roof Vent
- Flettner 3000 Roof Ventilator
- Electric Roof Extractor Fan
- Tack Locker
- Grooms Locker
- Storage Rack
- Extra Height Safety Loading Doors
- Padded Walls
- Padding for Partition
- Fixed Stallion Partition
- Sliding Stallion Partition
- Extra Height Partition
- Full Depth Partition
- Elite Partition
- Additional Standard Partition
- Breast Bar Solid to Floor
- Collapsable Full Depth Breast Bar
- Anti-Weaving Grill
- Loading Light
- Red LED Travel Light
- Digital Camera with 7” Monitor
- Digital Reversing Camera
- Internal Locker Access
- Wheel Clamp
- Hitch Cover
- Extra Tie Ring
- Spare Wheel & Bracket
- Number Plate Holder
- Safety Kit
- Alloy Wheels
- Paint
- Two-Tine Paint
- Graphics
- Paintseal Direct- protective paint coating
Colour:
Self colour white with black graphics. Any other colour available at extra cost
Wheels:
Four fully braked wheels with low profile tyres and wheel trims.
Tie Rings:
Two external tie rings
Access:
Step for easy access through grooms door
Grooms Door:
Large, lockable door for easy access with window

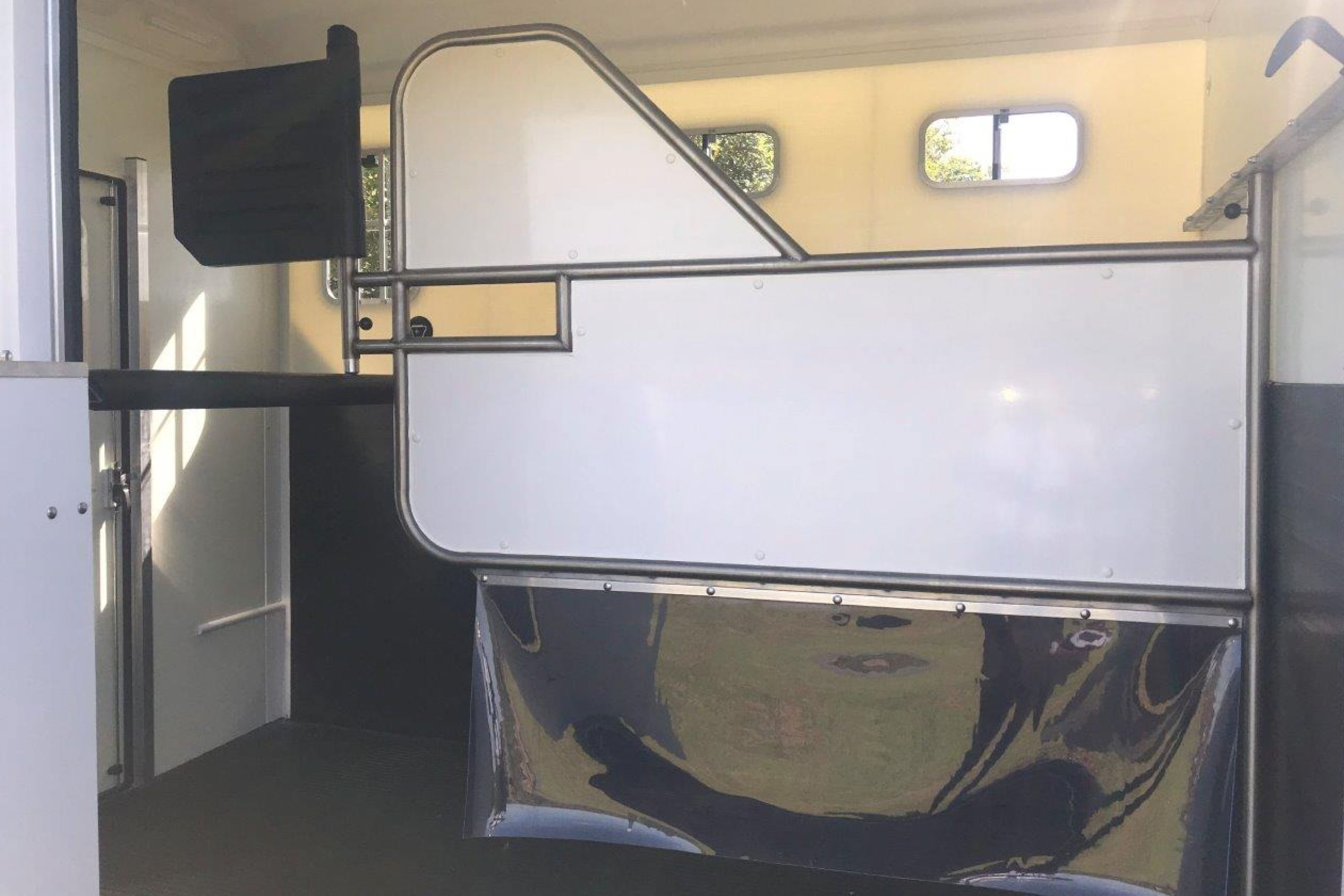

Partition:
Fully adjustable with skirt to the floor
Head Divider:
Separates horses heads whilst travelling
Collapsible Breast Bar:
Full width padded breast bar incorporating external release system for emergencies
Ventilation:
Three opening windows and dome roof vent
Lighting:
One interior light
Tie Rings:
Two horse tie rings and two hay net tie rings
Ramp Doors:
White, easy clean safety loading doors
Grooms Door:
Large, lockable door for easy access
Lighting:
One interior light
Floor:
Cushion flooring
Tack Fittings:
Two saddle racks, two bridle racks and two coat hooks
| Internal Dimensions | External Dimensions and Weights | ||||
| Horse Area: | Ft. ins | m | Body Area: | Ft.ins | m |
| Length | 9'6" | 2.940 | Length | 18'7 | 5.710 |
| Width (E) | 6'1" | 1.875 | Width (B) | 6'7" | 2.065 |
| Height | 7'7" | 2.360 | Height | 9'9" | 3.030 |
| Approx. Weight | Kg | ||||
| Front Axle Max Load | 1500kg | 1500kg | 1500kg | ||
| Back Axle Max Load | 1500kg | 1500kg | 1500kg | ||
| Unladen weight | 1095kg | 1095kg | 1095kg | ||
| Gross weight | 2000kg | 2500kg | 3000kg | ||
Weights and Dimensions
| External Dimensions: | Ft.ins | m |
|---|---|---|
| Length: | 18'7" | 5.710 |
| Width: | 6'7" | 2.065 |
| Height: | 9'9" | 3.185 |
| Approx. Weight: | Kg | m | |
|---|---|---|---|
| Unladen Weight: | 1095kg* | 1095kg* | 1095kg* |
| Axle 1: | 1500kg | 1500kg | 1500kg |
| Axle 2: | 1500kg | 1500kg | 1500kg |
| Gross Weight: | 2000kg | 2500kg | 3000kg |
Paint & Graphics
- Self Colour White with Black Graphics
Chassis Gross Weight
- 2000KG
Main Body
- Aerodynamic Fibreglass Mould
- Galvanised Steel Chassis
- Lockable Coupling
- Independent Suspension
- Four Fully Braked Wheels
- Built in ISO9001 Factory
- Two External Tie Rings
- Step for Easy Access through to Grooms Door
Living Area
- Easy-Clean Cushion Flooring
- Living Area Door
- One Interior Light
- Two Saddle Racks and Two Bridle Racks
Horse Area
- Self-Contained Horse Area
- Adjustable Partition with PVC Skirt to Floor
- Composite High Impact Kick Boards
- Composite Panels
- Full Width Collapsible Breast Bar
- Grooms Door
- Grooms Door Window
- Head Divider
- Two Horse and Haynet Tie Rings
- Light and Spacious Interior
- One Interior Light
- Slip Resistant Rubber Ramp
- Strong Aluminium Plank Floor
- White Easy Clean Safety Loading Doors
Tack & Changing Area
- Large Front Window
From only
£11,999.00 + vat
Paint & Graphics
- Self Colour White with Black Graphics
Chassis Gross Weight
- 2000KG
Main Body
- Aerodynamic Fibreglass Mould
- Galvanised Steel Chassis
- Lockable Coupling
- Independent Suspension
- Four Fully Braked Wheels
- Built in ISO9001 Factory
- Two External Tie Rings
- Step for Easy Access through to Grooms Door
Living Area
- Easy-Clean Cushion Flooring
- Living Area Door
- Mirror
- One Interior Light
- Two Saddle Racks and Two Bridle Racks
- Seat with Storage
Horse Area
- Self-Contained Horse Area
- Adjustable Partition with PVC Skirt to Floor
- Composite High Impact Kick Boards
- Composite Panels
- Extra Vent Window
- Full Width Collapsible Breast Bar
- Grooms Door
- Grooms Door Window
- Head Divider
- Two Horse and Haynet Tie Rings
- Light and Spacious Interior
- One Interior Light
- Slip Resistant Rubber Ramp
- Strong Aluminium Plank Floor
- White Easy Clean Safety Loading Doors
- Additional Skylight Roof Vent
- Storage Rack
- Storage Rack
- Padding for Partition
- Digital Camera with Monitor
Tack & Changing Area
- Large Front Window
From only
£13,278.00 + vat
Paint & Graphics
- Self Colour White with Black Graphics
- Vinyl Horse Head Graphic
Chassis Gross Weight
- 2000KG
Main Body
- Aerodynamic Fibreglass Mould
- Galvanised Steel Chassis
- Lockable Coupling
- Independent Suspension
- Four Fully Braked Wheels
- Built in ISO9001 Factory
- Two External Tie Rings
- Step for Easy Access through to Grooms Door
Living Area
- Easy-Clean Cushion Flooring
- Living Area Door
- Mirror
- One Interior Light
- Two Saddle Racks and Two Bridle Racks
- Seat with Storage
Horse Area
- Self-Contained Horse Area
- Adjustable Partition with PVC Skirt to Floor
- Composite High Impact Kick Boards
- Composite Panels
- Extra Vent Window
- Full Width Collapsible Breast Bar
- Grooms Door
- Grooms Door Window
- Head Divider
- Two Horse and Haynet Tie Rings
- Light and Spacious Interior
- One Interior Light
- Slip Resistant Rubber Ramp
- Strong Aluminium Plank Floor
- White Easy Clean Safety Loading Doors
- Additional Skylight Roof Vent
- Storage Rack
- Storage Rack
- Padding for Partition
- Elite Partition
- Digital Camera with Monitor
- Digital Reversing Camera
Tack & Changing Area
- Large Front Window
Accessories
- Alloy Wheels
From only
